Western Heritage UAV is dedicated to help our clients with latest UAV technology to extract valuable information from aerial data. Our UAV system with different configurations can provide Lidar point cloud products (DTM and DEM), thermal inspection and optical mapping service to clients in oil & gas, agriculture, survey, construction and archaeology etc.

The drones, operated in Western Heritage, include DJI Phantom 4 Pro, Matrice 600 Pro, Inspire 1 Pro and Mavic 2 Pro. The camera & sensor contain Optical camera, Lidar Sensor (Velodyne 32) and Thermal Camera (Zenmuse XT Series).

We are Transport Canada licensed with an Advanced Operations Certificate and have the $1 million Insurance, ISO 9001, COR Safety Certificate to operate in Canada, within urban areas or in close proximity aerodromes.

Solution 1: Lidar Solution

Our Lidar mapping (Velodyne 32 Lidar sensor and DJI Matrice 600 Pro), collects point cloud with 5cm vertical accuracy, 3 cm horizontal accuracy. This meets the requirements of Land Survey industry. Point clouds can be used to build accurate DTM & DEM, contour line and 3D Model. Clients can access 3D Model through Web Portal .
Contact Us

Lidar

WH employee mount Lidar and Optical Sensor to UAV
Lidar Profile

Profile from LIDAR point cloud
Bodo_Lidar_RGB

3D Model created from Lidar point cloud and Optical imagery

Bodo_Lidar_RGB

3D Model created from Lidar point cloud and Thermal imagery


Solution 2: Drone Aerial mapping for reclamation area

The abandoned sites in oil & gas mining industry need to be reclaimed back to an environment that is equivalent to the original state or better. With UAV mapping, we can capture the information at different stage along the site operations to assist reclamation efforts in satisfy the regulatory compliance. The data captured will be uploaded to our cloud platform for further analysis and monitoring: Environmental Footprint Monitoring Platform (EFMP): https://footprintmonitoring.com
Contact Us

Wellpad

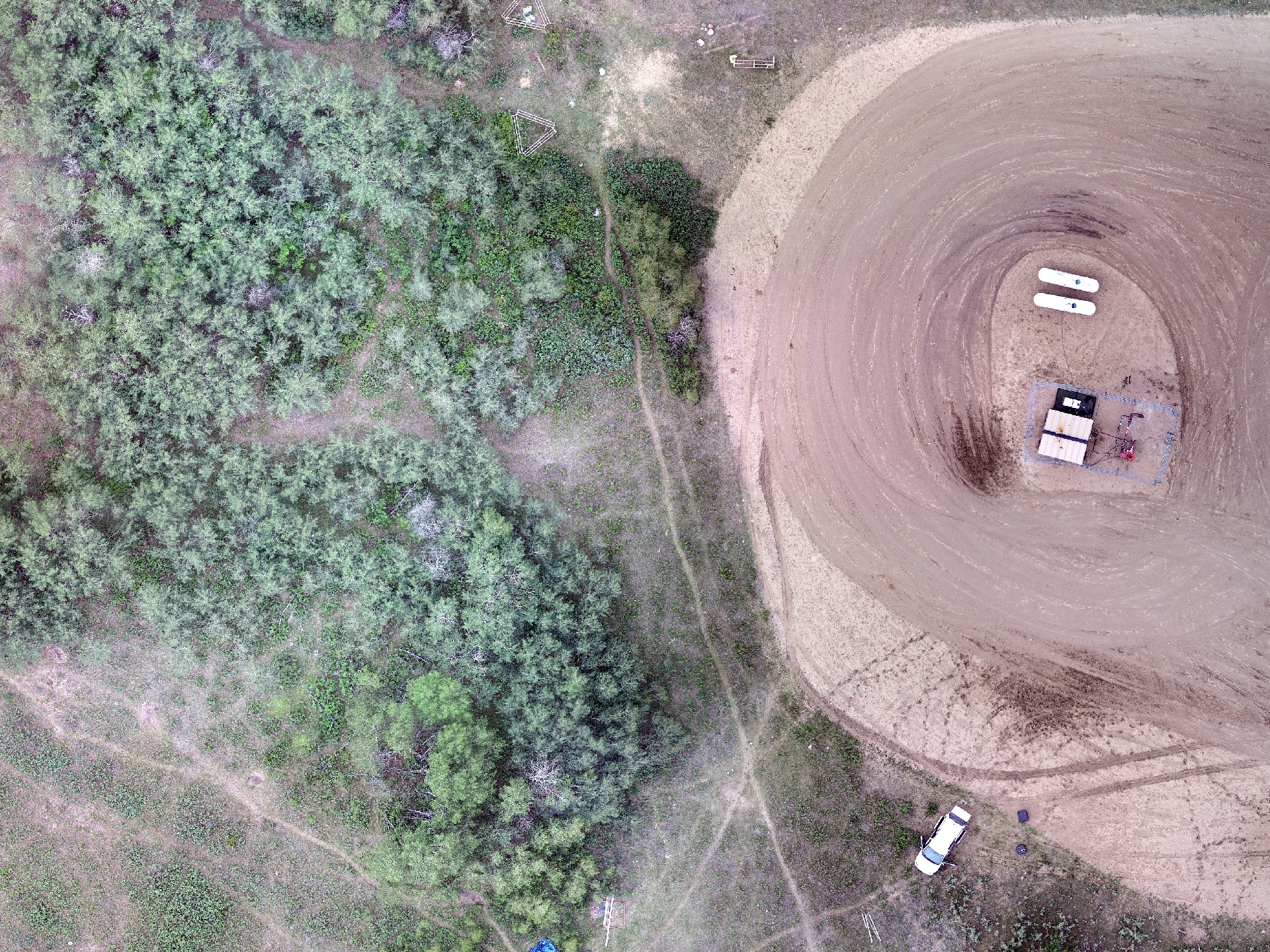

Aerial drone mapping of well pad
Phantom4

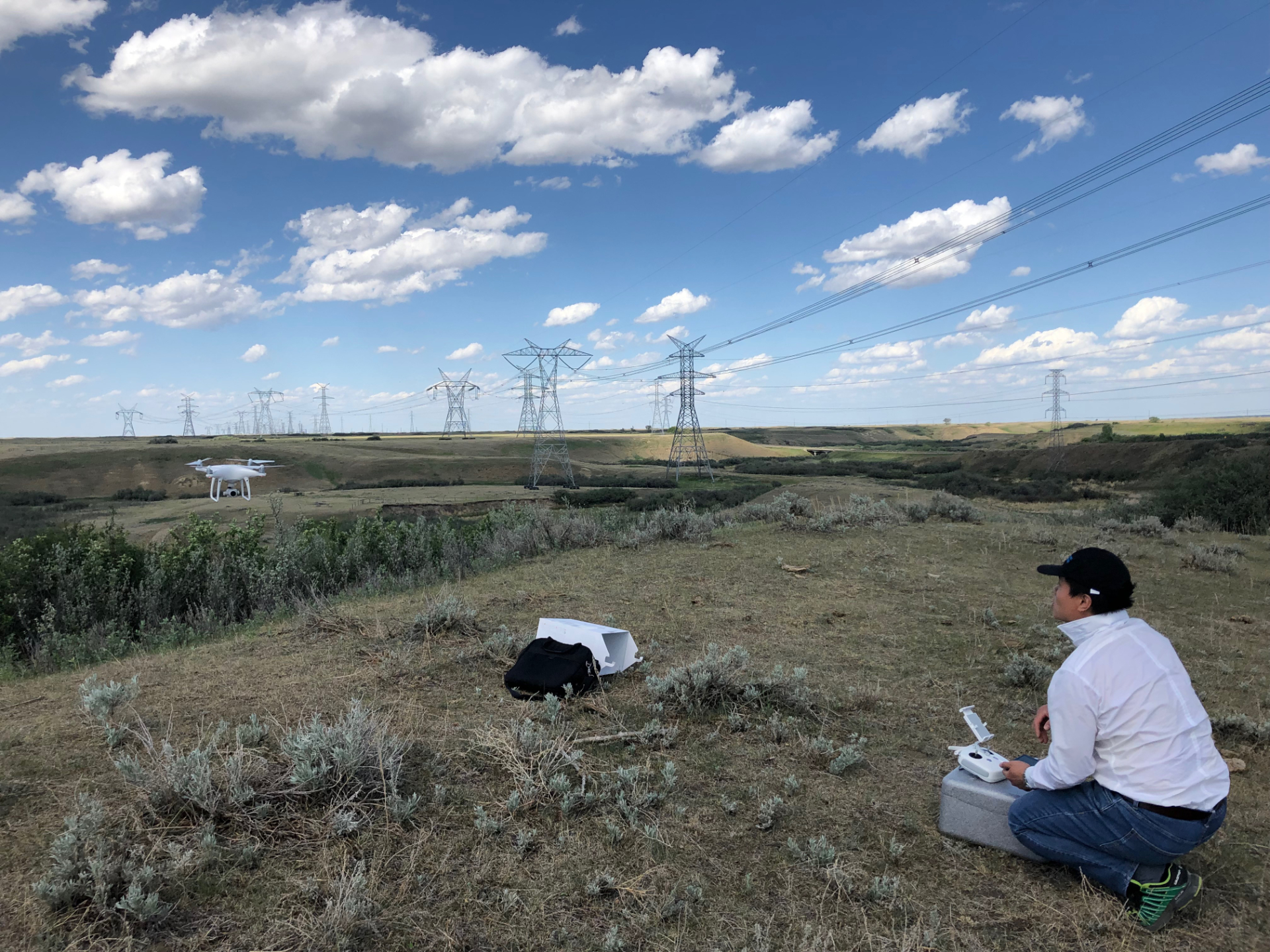

WH employee using DJI Phantom 4 Pro

Solution 3: Thermal Solution

Using drone equipped with thermal cameral, we can monitor the working condition of specific facilities and report the safety status. It has advantage:
• 360-degree view
• Inspect high-altitude devices
• Barrier free from weather conditions such as illumination
• Real time and accurate data
Contact Us

Inspire

Inspire 1 Pro in the field
Thermal

Facility inspection with UAV based thermal & optical sensor
